This example runs on two NVIDIA edge platforms: an NVIDIA DGX Spark (GB10 Grace Blackwell, 128 GB unified memory) and an NVIDIA Jetson AGX Thor (JetPack 7.2, 128 GB unified memory). On either one, Newton Fusion, the VSS agent’s LLM (NVIDIA Nemotron Nano 9B v2) and the rest of VSS all run on the one box, with no cloud calls at run time. The steps are the same on both, except where a step says otherwise.

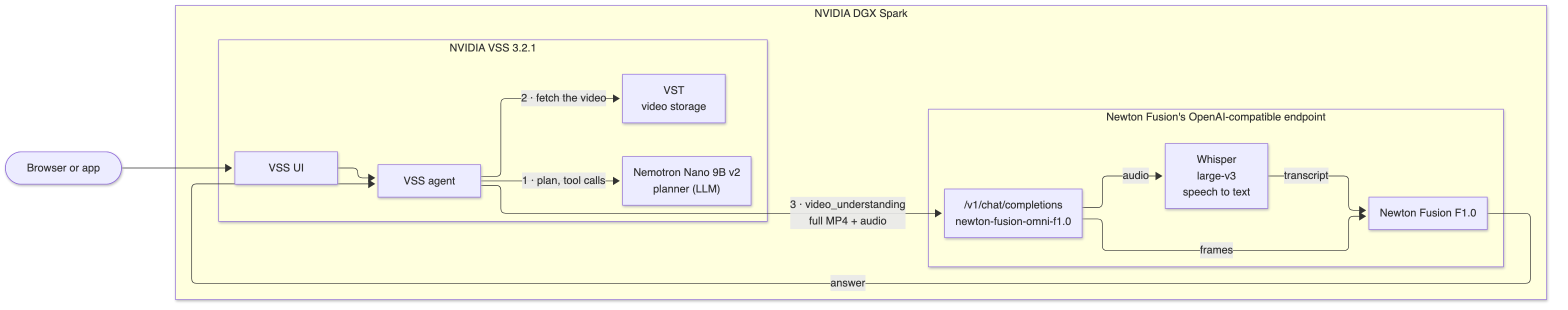

How it works

- You ask a question about an uploaded video.
- The VSS agent’s planner (Nemotron) decides to call its
video_understandingtool. - VSS sends the video to Newton Fusion’s endpoint as a Chat Completions request, with the MP4 inline.
- Newton Fusion answers from the frames and the speech transcript. Nemotron then writes the final reply.
Models
Newton Fusion replaces VSS’s default local VLM (NVIDIA Cosmos), which isn’t deployed.
In our tests, a question about a 2–3 minute narrated video took about 1 to 3 minutes end to end on either box (70–195 seconds). Newton Fusion’s part was 20–40 seconds; most of the rest is Nemotron planning and writing the reply.
Why the model is called newton-fusion-omni-f1.0
VSS 3.2.1 decides what to send its VLM from the model’s name:
Newton Fusion’s endpoint therefore serves the model under the name
newton-fusion-omni-f1.0, so VSS sends it the whole video with its sound. The weights are the same as Newton Fusion F1.0.
Requirements
- An NVIDIA DGX Spark (DGX OS), or an NVIDIA Jetson AGX Thor (JetPack 7.2), with Docker and the NVIDIA container runtime. Your user needs to be in the
dockergroup. - NVIDIA VSS 3.2.1
- An NGC personal key with the NGC Catalog service, to pull the VSS containers (step 2)
- Newton Fusion’s endpoint package from Archetype AI, for your platform (step 0)
Set it up
0
Get Newton Fusion's endpoint (Workstation, then Box)
Contact [email protected] for the endpoint package, and say which platform it’s for. It contains the serving software for that platform (arm64, CUDA), its configuration, and the Newton Fusion F1.0 and Whisper large-v3 weights (~38 GB). The Jetson Thor package also includes the CUDA libraries the endpoint needs, so the system’s CUDA toolkit doesn’t matter.Copy the package to the box and follow its README to place the weights. Newton Fusion’s weights and the Whisper weights are both required: Whisper is what lets Newton Fusion use the audio.
1
Start Newton Fusion's endpoint (Box)
Start the endpoint as described in the package README. It loads the models, then sends one text and one video request to warm up, and reports when it’s ready: about 4 minutes on a DGX Spark, and about 1 minute on a Jetson Thor. The endpoint then listens on port Check that it answers:
9095 and accepts two model names: newton-fusion-omni-f1.0 (use this one with VSS) and f1.0.First start on a new Jetson Thor: the first video request compiles GPU kernels, which takes about 4 minutes. The warm-up does this before VSS asks anything, and the compiled kernels are cached for later starts.
Ask about a video directly, the way VSS does
Ask about a video directly, the way VSS does
VSS sends the MP4 inline, base64-encoded, as a Requests are limited to 64 MiB, so keep videos under about 45 MB (base64 adds a third). Newton Fusion sees 64 frames per video, at low resolution, so 480p video loses nothing.
video_url content part:2
Get an NVIDIA key (Browser, then Box)
VSS’s containers come from NVIDIA’s container registry,
nvcr.io.- Sign in at ngc.nvidia.com. Open your profile (top right) → Setup → Generate Personal Key.
- Under Services Included, select NGC Catalog. That’s the only service needed here: Newton Fusion and Nemotron both run on the box, so Public API Endpoints (NVIDIA-hosted models) is optional.
- Generate the key and copy it (
nvapi-…). It’s shown only once.
Login Succeeded means the key works. A bare unauthorized means NGC Catalog isn’t on the key.3
Check for another VSS deployment (Box)
VSS uses fixed container names and host ports (3000, 7777, 8000, 30000, 30001, 30081, 30888), so only one VSS deployment can run on a machine. Check for one:
4
Deploy VSS with Newton Fusion as its VLM (Box)
Get VSS 3.2.1:Make two file edits that no command-line flag covers:Then deploy, pointing VSS at Newton Fusion’s endpoint.
<box-ip> is the address your browser uses to reach the box. 172.17.0.1 is Docker’s default bridge gateway; check yours with ip -4 addr show docker0. On first start, VSS pulls its containers and Nemotron downloads its weights (~10 GB), which takes about 10 minutes.- DGX Spark
- Jetson Thor
5

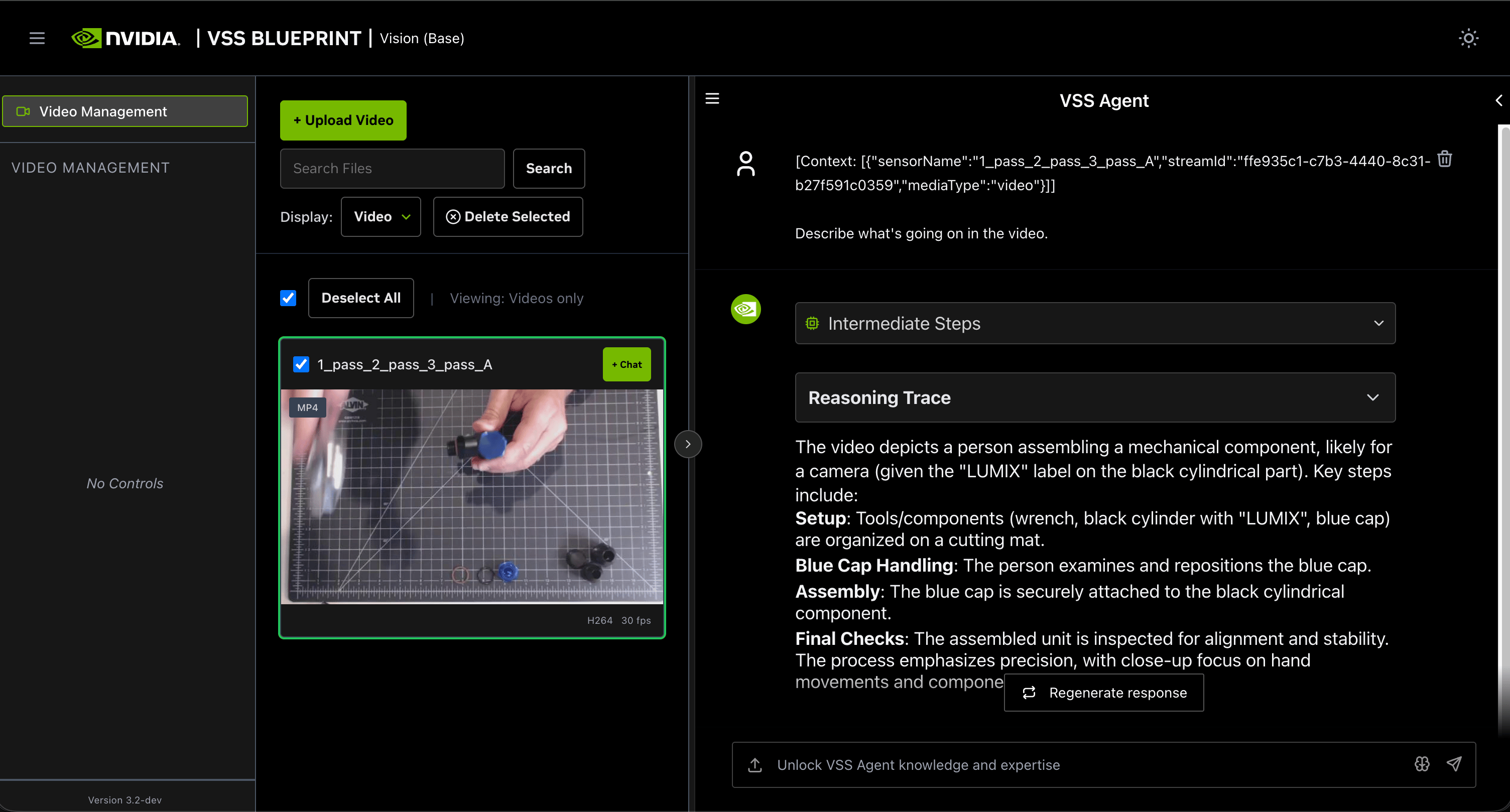

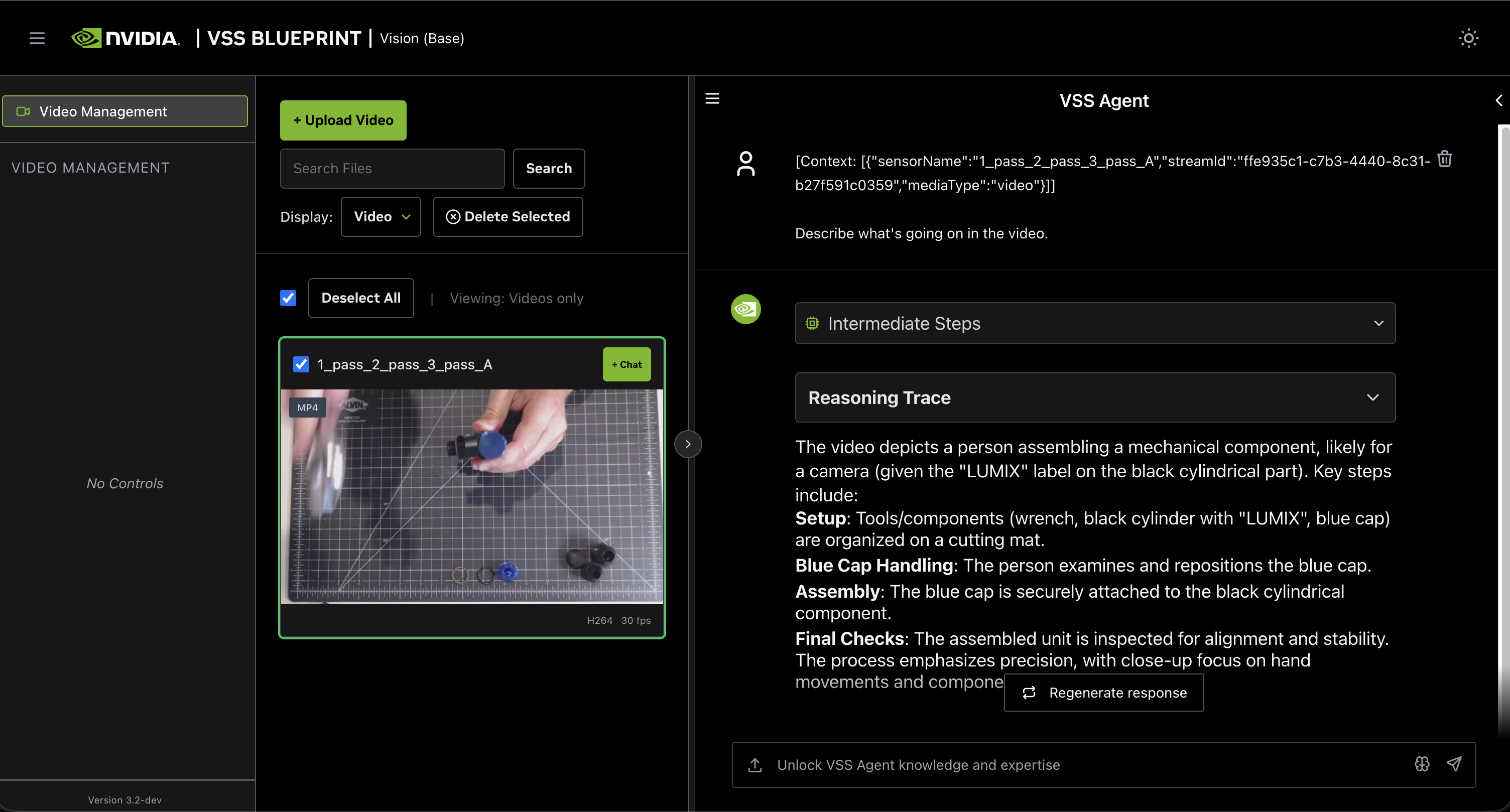

Ask about a video (Browser, Box)
Open
http://<box-ip>:3000. Upload a video (+ Upload Video), select it, click + Chat, and ask, for example, “Describe what’s going on in the video.” Answers take 1–3 minutes.To confirm that Newton Fusion answered, on the box:use_video_file_base64: True means VSS sends the full MP4, not frames. You should see the same lines on both platforms.6
Shut it down (Box)
Tips
-
Name the video and the tool in the question, and ask for one call. Nemotron sometimes replies with a clarifying question, or calls Newton Fusion several times and rewrites its answer. This wording keeps it to one call, with Newton Fusion’s answer passed through:
Analyze the video “<name>” with video_understanding. Call it once, on the whole video, with my request below word for word as its user_prompt, and present its result as your answer without analyzing again: <your question>
In our tests it cut a typical answer from about 220 s to about 100 s. - Ask for an explicit format for time stamps, such as “Put each step on its own line, in the form “MM:SS - MM:SS: what happens”, using the actual times from the video.” With a looser request, Newton Fusion may answer in one paragraph, and Nemotron may then invent step times when it rewrites the answer.
- Ask about what is said, not other sounds. Newton Fusion hears a video through its speech transcript, so narration and dialogue come through, but alarms, engines or music mostly don’t.
- Prefer Newton Fusion’s answer when the two differ. Newton Fusion answers deterministically (temperature 0). Nemotron’s rewrite is where details get dropped or changed.
